| 1.
Structure |
| This charger has a silicon rectifier, a leakage transformer, a magnetic contractor and a control print board a control printed circuit board mounted inside and an operation panel is equipped on the front. Moreover, it is possible to mount the charger even in narrow places that is small-sized and high-performance and its electrical components are not exposed. |
|
| 2.
Rating |
|
Charger type
|
Battery voltage (v)
|
Capacity of charged
battery (AH/5HR)
|
Size
W×L×H
|
Weight(Kg)
|
Capacity of output fuse (A) |
BDW 230-48
|
48 |
210~230
|
400×420×360
|
59
|
100 |
| BDW 295-48 |
260~330
|
65
|
100 |
| BDW 365-48 |
335~385
|
69
|
100 |
BDW 460-48
|
400~485
|
490×480×440
|
75
|
150 |
| BDW 540-48 |
500~585
|
80
|
150 |
| BDW 620-48 |
600~700
|
90 |
200 |
| BDW 740-48 |
700~770 |
480×520×460
|
97 |
250 |
| BDW 840-48 |
800~870 |
107 |
250 |
|
|
| *Separate specifications for battery voltages of 24, 36, 72 and 80V |
| |
| 3. Setting of circuit breaker according to capacity of charger and reference table of lead-in |
|
|
| Type and capacity of charger |
Input voltage and current |
Setting values of overcurrent relay |
| 220V |
380V |
440V |
220V |
380V |
440V |
BMF230~48(4.3KVA)
|
11.5 |
6.5 |
5.5 |
13.0 |
7.5 |
6.0 |
BMF230~48(5.5KVA)
|
14.5 |
8.5 |
7.0 |
16.0 |
9.0 |
9.0 |
BMF230~48(6.8KVA)
|
17.5 |
10.0 |
9.0 |
19.0 |
11.0 |
9.0 |
BMF230~48(8.5KVA)
|
22.5 |
13.0 |
11.0 |
24.0 |
13.0 |
11.0 |
BMF230~48(10.0KVA)
|
26.0 |
15.0 |
13.0 |
28.0 |
16.0 |
13.0 |
BMF230~48(11.5KVA)
|
30.3 |
17.5 |
15.1 |
39.4 |
22.8 |
19.7 |
BMF230~48(13.7KVA)
|
30.0 |
20.0 |
17.5 |
39.0 |
24.0 |
20.0 |
BMF230~48(15.5KVA)
|
40.0 |
22.0
|
20.0 |
45.0 |
24.0 |
22.0 |
|
|
| |
| 4. Specification |
|
| Ambient temperature |
-10℃~+40℃ |
| Ambient temperature |
under 90% RH
|
| Humidity |
AC 1500V/1 minute |
| Proof pressure |
More than 0MΩ at DC 500V mega |
| Insulation resistance |
AC 2000V~240V
/ 360V~4000V |
| AC input range |
420V~460V,
50/60Hz |
| DC output range |
DC40V~65V |
| Charging time |
About 8 hours (in case of 80% charging) |
|
|
| |
| 5. Semi-constant voltage/constant current charging method of the charger |
|

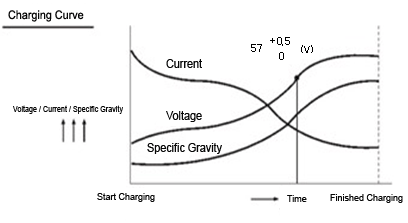

The charger is controlled by micom to have a plot of charging of [output voltage] vs [output current] using a leakage transformer..
Accordingly, in case that a battery with irregular amount of discharge is charged, the charging is completed by automatic determination of the amount of charge corresponding to the amount of discharge. |
| |
 |
| |
