The in terior of the charger contains built-in silicon rectifier,leakage transformer,electronic contactor and PCB
A control panel is on the front of the charger.This highly efficient charger can be installed even in a small space,
since it is small-sized and there is no electric components exposed on the outside.
Charger Type |
Battery
Voltage |
Capacity of
the charge
possible battery |
Size
W¡¿L¡¿H |
Weight(Kg) |
Output fuse capacith(A) |
BDW 230-48 |
220V
380V
440V |
48 |
180~240 |
450¡¿450¡¿570 |
64 |
100 |
BDW 295-48 |
260~330 |
67 |
100 |
BDW 365-48 |
335~385 |
73 |
150 |
BDW 450-48 |
440~520 |
79 |
200 |
500¡¿500¡¿570 |
BDW 580-48 |
530~685 |
87 |
250 |
BDW 850-48 |
710~930 |
113 |
400 |
* Ambient Air Temperature : -10¡ÆC ~ 40¡ÆC
* Humidity : below 90% RH
* Inner Pressure : AC 1500v/1 minute
* Insulation Resistance : over 10M
* AC Input Range : AC 200V ~ 240V/360V~400V/420V~460V,50Hz/60Hz
* DC Output Range : DC 40V~65V (Battery Voltage:48V)
* The Number of Nomal Charging Hours : about 8 Hours (in case of 80% discharge)
The BM TECH battery charger,with the use of a leakage transformer,is controlled by a microcomputer to be characterized
by "Output Voltage to Output Current" charging.
In this way,even when charging a battery with irregular discharge quantities,the charger automaitcally determines the amount
to charge according to discharge level and completes a full charge properly.

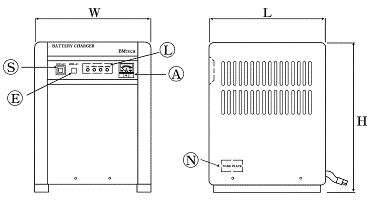

Symbol |
Name |
S |
Emergency stop switch |
E |
Equal switch |
L |
LED lamp |
A |
Ammeter |
H |
Name plate |
|
|
Type |
SIZE (mm) |
Wight(Kg) |
W |
L |
H |
BDW 230-48 |
450 |
450 |
570 |
64 |
BDW 295-48 |
67 |
BDW 365-48 |
73 |
BDW 460-48 |
79 |
BDW 580-48 |
500 |
500 |
570 |
87 |
BDW 850-48 |
113 |
|
|
